EXM Series Portable Fridge with Wheels

Single-zone portable fridge with wheels.

Portable fridge with wheels for larger single-zone storage.

Within the EX / EXM product family, EXM offers 30 L, 40 L and 50 L portable fridges with wheels, open single-zone storage and a telescopic pull handle.

SELECT MODEL

Color

Closed black EXM30 30L wheeled compressor car refrigerator with its telescopic handle extended.

Application Export retail programs and customized front panels

Single door
Tuya APP Bluetooth connection
Car and home use
Single zone
Intelligent temperature control
Celsius and Fahrenheit switch

Model specifications

Choose the capacity that fits the route.

Model
EXM30
EXM40
EXM50
Capacity
30 L
40 L
50 L
Voltage
12/24 V DC; 110-240 V AC via adapter
12/24 V DC; 110-240 V AC via adapter
12/24 V DC; 110-240 V AC via adapter
Cooling
Compressor cooling
Compressor cooling
Compressor cooling
Temperature
Down to -20 °C (-4 °F)
Down to -20 °C (-4 °F)
Down to -20 °C (-4 °F)
Product size
649 × 423 × 409 mm
649 × 423 × 489 mm
649 × 423 × 569 mm
Packing size
692 × 462 × 452 mm
692 × 462 × 532 mm
692 × 462 × 612 mm
Net weight
13.5 kg
14.5 kg
15.5 kg
Gross weight
16.8 kg
18 kg
19.5 kg
Power
60 W
60 W
60 W
Loading QTY
20GP: 185 units; 40HQ: 380 units
20GP: 148 units; 40HQ: 304 units
20GP: 111 units; 40HQ: 228 units
Application
Export retail programs, customized front panels and vehicle cooling
Export retail programs, customized front panels and vehicle cooling
Export retail programs, customized front panels and vehicle cooling

EXM30

Capacity
30 L
Voltage
12/24 V DC; 110-240 V AC via adapter
Cooling
Compressor cooling
Temperature
Down to -20 °C (-4 °F)
Product size
649 × 423 × 409 mm
Packing size
692 × 462 × 452 mm
Net weight
13.5 kg
Gross weight
16.8 kg
Power
60 W
Loading QTY
20GP: 185 units; 40HQ: 380 units
Application
Export retail programs, customized front panels and vehicle cooling

EXM40

Capacity
40 L
Voltage
12/24 V DC; 110-240 V AC via adapter
Cooling
Compressor cooling
Temperature
Down to -20 °C (-4 °F)
Product size
649 × 423 × 489 mm
Packing size
692 × 462 × 532 mm
Net weight
14.5 kg
Gross weight
18 kg
Power
60 W
Loading QTY
20GP: 148 units; 40HQ: 304 units
Application
Export retail programs, customized front panels and vehicle cooling

EXM50

Capacity
50 L
Voltage
12/24 V DC; 110-240 V AC via adapter
Cooling
Compressor cooling
Temperature
Down to -20 °C (-4 °F)
Product size
649 × 423 × 569 mm
Packing size
692 × 462 × 612 mm
Net weight
15.5 kg
Gross weight
19.5 kg
Power
60 W
Loading QTY
20GP: 111 units; 40HQ: 228 units
Application
Export retail programs, customized front panels and vehicle cooling

Stable system.

Reinforced structure.

True-rated capacity.

Height

30 L
409 mm
40 L
489 mm
50 L
569 mm

Height

30 L
409 mm
40 L
489 mm
50 L
569 mm

Cooling system.

Compressor, condenser, wrap-around evaporator, airflow, insulation, and control logic work together to align display and chamber temperature.

DOWN TO -20 °C. FOR REAL.

We mean it.

-20 °C

Cold you can actually measure.

Display + chamber aligned

Display and chamber temperature align.

System-matched calibration

Tuned as one system.

Rapid Cooling.

0 °C

from ambient to 0 °C ≈ 20 min

Black off-road SUV kicking up dust on a rocky mountain trail.
An off-road SUV crosses a rocky mountain trail with dust rising behind it.
Person pulling an EXM Series wheeled compressor car refrigerator along a forest path toward an RV and campfire.
A camper uses the raised pull handle and wheels to move the EXM refrigerator across uneven ground beside a tent.
EXM Series 30–50L wheeled compressor car refrigerator standing in an open SUV cargo area in a rocky landscape.
The EXM refrigerator stands upright behind the rear seats with its lid, control panel and pull handle accessible from the open tailgate.

ANTI SHAKING

Steady through the bumps.

Stable cooling through vibration,
rough roads, and uneven ground.

Vibration resistant.

Stable performance on rough roads.

Built for uneven ground.

Reliable operation when the terrain shifts.

Compressor stays steady.

Cooling stays consistent on the move.

Details for moving use.

IMD panel with built-in USB power..

Charge your phone while the fridge is running..

EXM Series control panel with USB port, digital display and two lid cup recesses.
The EXM control panel places temperature controls and a USB charging port within easy reach.

Rubber-wrapped wheels..

The rubber layer adds grip and helps absorb vibration when the fridge is pulled over rough ground..

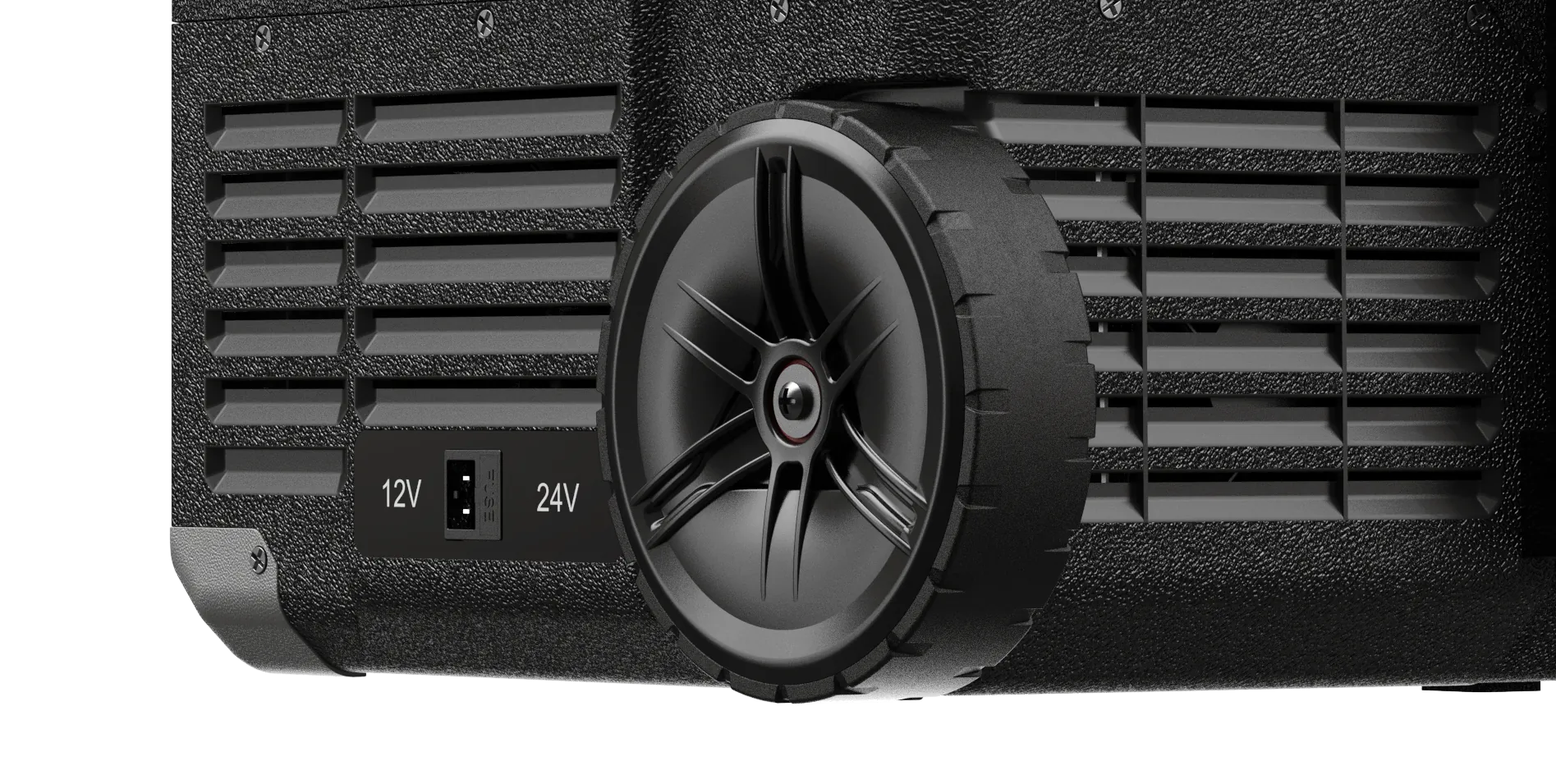

EXM Series wheel detail beside ventilation grilles and a 12V/24V DC power inlet.
Close-up of the EXM transport wheel showing its treaded rubber outer surface, wheel hub, ventilation grille and adjacent 12/24 V socket.

Use Bluetooth to control
your fridge
from your phone.

Connect with the Tuya app to monitor and adjust your portable fridge with ease.

Tuya
Bluetooth control app screen showing 4°C, 14V, operating status and battery-protection settings.
The Tuya app provides remote temperature monitoring and control for the EXM refrigerator.
Illuminated tent and dark SUV beneath a starry night sky.
A camping scene illustrates the EXM operating level of no more than 40 dB between conversation and whisper levels.

Quiet operation

Runs quietly nearby.

≤40 dB

Low operating noise for rest stops, cabins, and camp setups.

EXM Series wheeled compressor car refrigerator with a raised rectangular top panel, cup recesses, wheel and side handle.

EXM Series wheeled exterior

Closed three-quarter view showing the single-zone body, integrated wheels and upper handle structure.

EXM30 30L, EXM40 40L and EXM50 50L wheeled compressor car refrigerators arranged from shortest to tallest.

EXM30, EXM40 and EXM50 size lineup

The three black EXM models are shown side by side in increasing height and capacity, each with a wheel, side handle and top digital controls.

EXM Series opening render with an upright lid and translucent intermediate lid position above the chamber.

EXM Series open single-zone storage

Open-lid view showing the deep main chamber and raised compressor-side storage area.

EXM Series 30–50L wheeled compressor car refrigerator tilted onto its wheels with telescopic pull handle extended.

EXM Series tilted onto its wheels

The extended pull handle and wheel position show how the loaded fridge can be tilted for transport.

Open EXM Series 30–50L single-zone wheeled compressor car refrigerator with deep chamber and raised compressor-side section.

EXM Series open interior layout

Front view of the open chamber showing the insulated liner and stepped compressor-side section.

MATERIALS

Product Material.

Appearance Parts
Internal Parts
Appearance Parts
Housing PE Plastic
PE Plastic PE Plastic
Frame ABS Plastic
ABS Plastic ABS Plastic
Door PE Plastic
PE Plastic PE Plastic
Compressor Cabin Cover ABS Plastic
ABS Plastic ABS Plastic
Handle PE Plastic
PE Plastic PE Plastic
Wheel Rubber + PE Plastic
Rubber + PE Plastic Rubber + PE Plastic
Tie Rod Plastic + Aluminum Alloy
Plastic + Aluminum Alloy Plastic + Aluminum Alloy
Internal Parts
Inner Liner One-piece Molding HIPS
One-piece Molding HIPS One-piece Molding HIPS

Usage scenarios

Built for open storage on the move.

01

Outdoor supply

Integrated wheels and a telescopic pull handle simplify transport around campsites, parking areas and outdoor setups.

02

Vehicle travel

Open single-zone storage for road trips, larger loads and flexible packing.

03

Distributor range planning

30 L, 40 L and 50 L portable fridges with wheels for channel lineup planning.

04

Brand customization

Front-panel, color, packaging and accessory options for retail programs.

Certifications

CECBREDRoHS

Downloads

Product documents.

Product catalogue Download User manual Download Spec sheet Download Certification documents Request document
