M Series Dual-Zone Portable Car Fridge with Wheels

Dual-Zone Portable Car Fridge with Wheels for premium programs.

Dual-Zone Portable Car Fridge with Wheels for premium programs.

M Series combines a dual-zone portable car fridge layout, integrated wheels, a folding pull handle, rugged construction and battery-ready architecture for distributors and outdoor brands planning higher-spec programs.

SELECT MODEL

Color

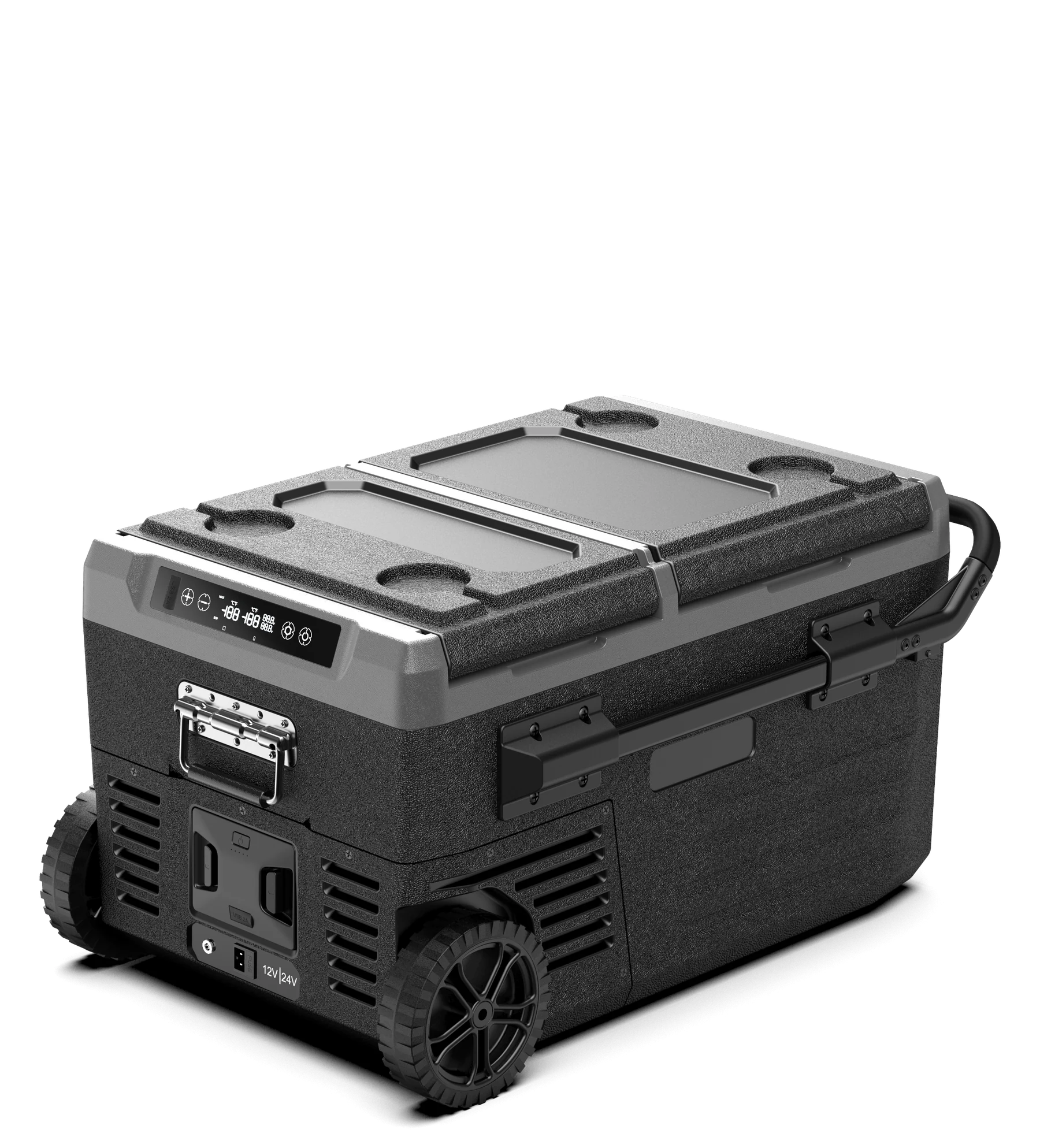

Closed black M35 35L wheeled dual-zone compressor car refrigerator with two lids and a folded pull handle.

Application Premium outdoor, mobile camp, long-haul self-driving

Two doors
Tuya APP Bluetooth connection
Dual-zone independent control
Metal handle
Two storage zones
Car and home use
Celsius and Fahrenheit switch
Battery protection

Model specifications

Choose the capacity that fits the route.

Model
M35
M45
M55
Capacity
35 L
45 L
55 L
Voltage
12/24 V DC; 110-240 V AC via adapter
12/24 V DC; 110-240 V AC via adapter
12/24 V DC; 110-240 V AC via adapter
Cooling
Dual-zone compressor cooling
Dual-zone compressor cooling
Dual-zone compressor cooling
Temperature
Down to -20 °C (-4 °F)
Down to -20 °C (-4 °F)
Down to -20 °C (-4 °F)
Product size
763 × 462 × 390 mm
763 × 462 × 450 mm
763 × 462 × 510 mm
Packing size
810 × 535 × 465 mm
810 × 535 × 525 mm
810 × 535 × 585 mm
Net weight
16 kg
16.4 kg
17 kg
Gross weight
19.1 kg
19.7 kg
20.5 kg
Power
90 W
90 W
90 W
Loading QTY
20GP: 140 units; 40HQ: 290 units
20GP: 112 units; 40HQ: 290 units
20GP: 112 units; 40HQ: 232 units
Application
Premium outdoor, mobile camp and long-haul self-driving
Premium outdoor, mobile camp and long-haul self-driving
Premium outdoor, mobile camp and long-haul self-driving

M35

Capacity
35 L
Voltage
12/24 V DC; 110-240 V AC via adapter
Cooling
Dual-zone compressor cooling
Temperature
Down to -20 °C (-4 °F)
Product size
763 × 462 × 390 mm
Packing size
810 × 535 × 465 mm
Net weight
16 kg
Gross weight
19.1 kg
Power
90 W
Loading QTY
20GP: 140 units; 40HQ: 290 units
Application
Premium outdoor, mobile camp and long-haul self-driving

M45

Capacity
45 L
Voltage
12/24 V DC; 110-240 V AC via adapter
Cooling
Dual-zone compressor cooling
Temperature
Down to -20 °C (-4 °F)
Product size
763 × 462 × 450 mm
Packing size
810 × 535 × 525 mm
Net weight
16.4 kg
Gross weight
19.7 kg
Power
90 W
Loading QTY
20GP: 112 units; 40HQ: 290 units
Application
Premium outdoor, mobile camp and long-haul self-driving

M55

Capacity
55 L
Voltage
12/24 V DC; 110-240 V AC via adapter
Cooling
Dual-zone compressor cooling
Temperature
Down to -20 °C (-4 °F)
Product size
763 × 462 × 510 mm
Packing size
810 × 535 × 585 mm
Net weight
17 kg
Gross weight
20.5 kg
Power
90 W
Loading QTY
20GP: 112 units; 40HQ: 232 units
Application
Premium outdoor, mobile camp and long-haul self-driving

Dual-zone cooling

INDEPENDENTDUAL-ZONECOOLING.

Set each compartment independently from −20°C to 20°C.

20°C 0°C −20°C
−20°C

Left zone

Open M Series 35–55L dual-zone compressor car refrigerator with ice in the left compartment and produce in the right.
The open M Series refrigerator displays two separate compartments set to −20 °C and 4 °C for frozen and chilled storage.
20°C 0°C −20°C
4°C

Right zone

Efficient thermal transfer

COLDMOVESFASTER.

Efficient thermal transfer.

Close-up of the M Series embossed aluminium inner liner
The textured aluminium liner spreads cold efficiently across the M Series storage chamber.

Embossed aluminium conducts cold directly across the inner chamber.

Reversible lids

OPEN FROMEITHER SIDES.

The reversible lid design adapts the opening direction to the way the fridge is loaded, giving easier access from either side of a vehicle or campsite setup.

Switch the opening direction

Open black M Series unit with its two compartment lids raised in opposite directions.
The two M Series compartment lids are shown in alternate opening directions so access can be configured for the installation space.

Switch the opening direction

Flexible power

Power wherever you go.

Run the M Series from vehicle DC power, household electricity through a compatible adapter, an optional battery, or solar energy.

M Series rear power panel with a battery bay, solar socket and 12V/24V input.
Rear view of the M Series power area showing the removable battery bay, charge indicator, solar input and 12/24 V vehicle connection between the wheels.

Vehicle
DC 12/24V

Connect to your car, truck, or RV.

Home
AC 110–240V

Use with a compatible AC adapter.

Optional
Battery

Removable battery for off-grid cooling.

Solar
Power

Connect a compatible solar panel.

Solar + battery system

Solar power. Extended runtime.

Through the dedicated SOLAR input, solar energy can power the refrigerator and charge the battery simultaneously—extending cooling time for camping, overlanding and off-grid use.

Solar Panel

Dedicated
SOLAR Input

Power the
Refrigerator

Charge the
Optional Battery

Extended
Off-Grid Cooling

M Series 35–55L wheeled dual-zone compressor car refrigerator with its removable battery pack outside the rear bay.
The M Series battery pack is shown outside its open rear bay beside the wheel, solar socket and digital control panel.

Removable battery.
Cooling on your terms.

Add the optional battery for portable cooling away from vehicles, wall outlets and fixed power sources.

Battery runtime

Up to 7 hours

at 0°C to −5°C

Up to 4 hours

at −20°C

Runtime is based on internal testing and may vary with ambient temperature, set temperature, usage frequency and operating conditions.

Battery sold separately.

Details for moving use.

IMD panel with built-in USB power.

Charge your phone while the fridge is running.

M Series IMD control panel with built-in USB power
The M Series control panel combines temperature controls with a USB port for charging a phone.

Rubber-wrapped wheels.

The rubber layer adds grip and helps absorb vibration when the fridge is pulled over rough ground.

M Series rubber-wrapped wheel detail
A close view of the rubber outer layer used to add grip and reduce vibration while moving the refrigerator.

Built for a Better Experience

Smarter control, more stability, and quieter performance for every journey.

Tuya Bluetooth App

Connect via the Tuya Bluetooth app for simple and smart control.

Anti-shaking

Anti-shaking design keeps it stable even on bumpy roads.

40 dB Low Noise

Runs as low as 40 dB, creating a quiet and comfortable environment.

Closed black M45 45L with two lids, wheels and a folded pull handle.

M45 black exterior

Three-quarter view of the rugged black body, integrated wheels, side handle and top controls.

Closed sage-green M45 45L with two lids, wheels and a folded pull handle.

M45 sage-green exterior

Front three-quarter view of the sage-green configuration and its integrated mobile structure.

Open sage-green M45 45L dual-zone compressor car refrigerator showing two empty storage compartments.

M45 independent dual lids

Both insulated lids open separately for direct access to the two storage zones.

Closed sage-green M45 45L with one wheel and the pull handle folded along the side.

M45 wheel-and-handle side profile

Side view showing the integrated wheels, full-width pull handle and molded body.

Open black M Series unit with one wide and one narrow empty compartment.

M Series independent dual-zone interior

Two separate compartments and lids support independent temperature settings.

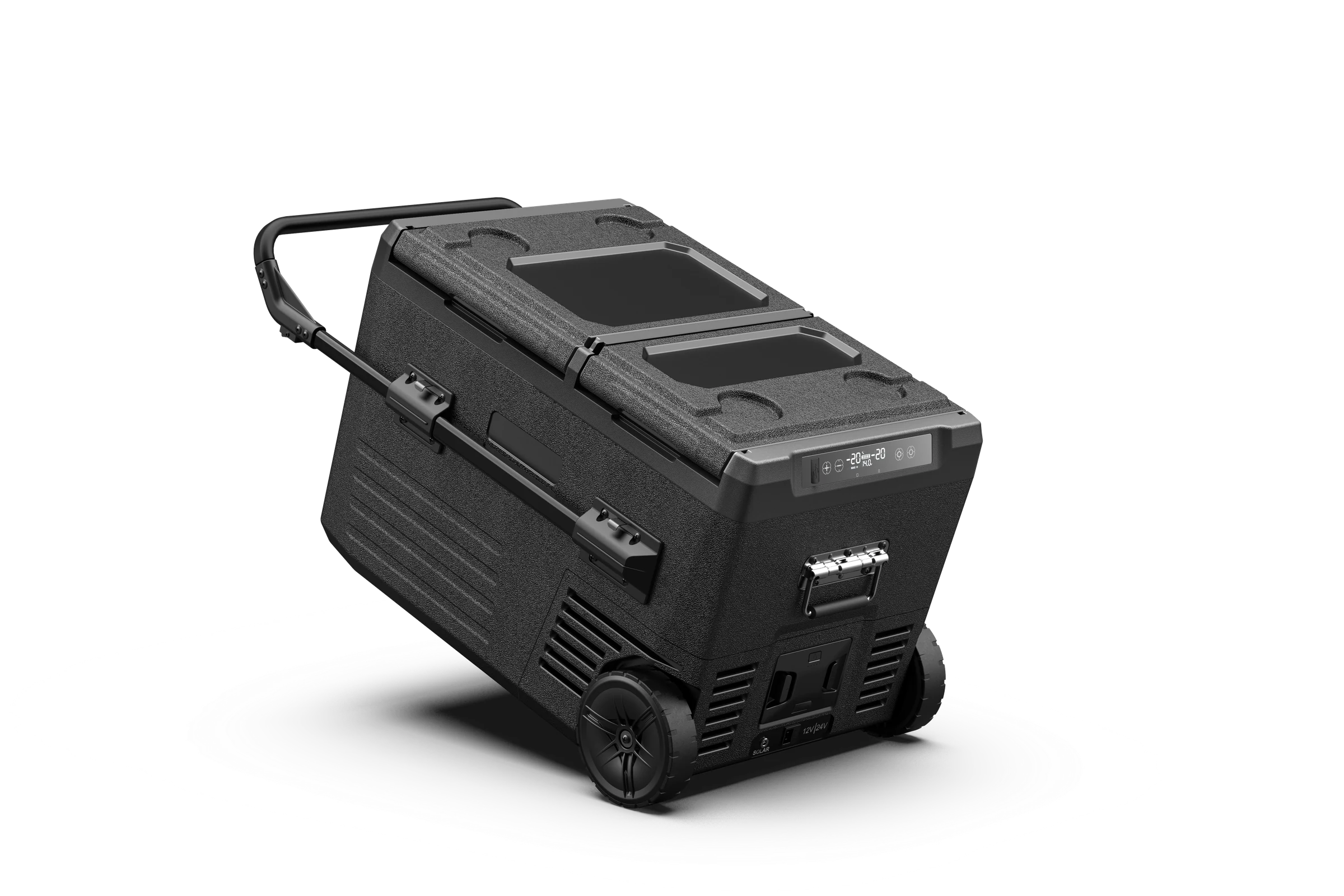

M Series 35–55L tilted onto its wheels with the pull handle extended.

Wheels and folding pull handle

The M Series refrigerator is shown tilted onto its wheels with the folding pull handle fully extended for transport.

M Series interior with a white LED strip along the upper compartment wall.

M Series interior LED light

The integrated light strip improves visibility inside the insulated storage chamber.

M Series folding metal side carry handle with black grip and visible hinge points.

M Series folding metal side handle

The rubber-grip folding metal handle supports controlled lifting and carrying.

MATERIALS

Product Material.

Appearance Parts
Internal Parts
Appearance Parts
Housing PE Plastic
PE Plastic PE Plastic
Frame ABS Plastic
ABS Plastic ABS Plastic
Door PE Plastic
PE Plastic PE Plastic
Compressor Cabin Cover PP Plastic
PP Plastic
Handle Metal + Plastic
Metal + Plastic Metal + Plastic
Wheel Rubber + PE Plastic
Rubber + PE Plastic Rubber + PE Plastic
Folding Pull Handle Plastic + Aluminum Alloy
Plastic + Aluminum Alloy Plastic + Aluminum Alloy
Internal Parts
Inner Liner Embossed Aluminum
Embossed Aluminum Embossed Aluminum
Inner Base HIPS
HIPS HIPS

Usage scenarios

Built for higher-spec outdoor programs.

01

Campsite supply

Integrated wheels and a folding pull handle make drinks, food and gear easier to transport.

02

Dual-Zone Portable Car Fridge

Separated compartments support different temperature and storage needs on longer trips.

03

Rugged handling

A blow-moulded body built for loading, movement and repeated use.

04

Customization programs

A full-feature product design for buyers who need broader technical and accessory options.

Certifications

CE

Downloads

Product documents.

Product catalogue Download User manual Download Spec sheet Download Certification documents Request document
